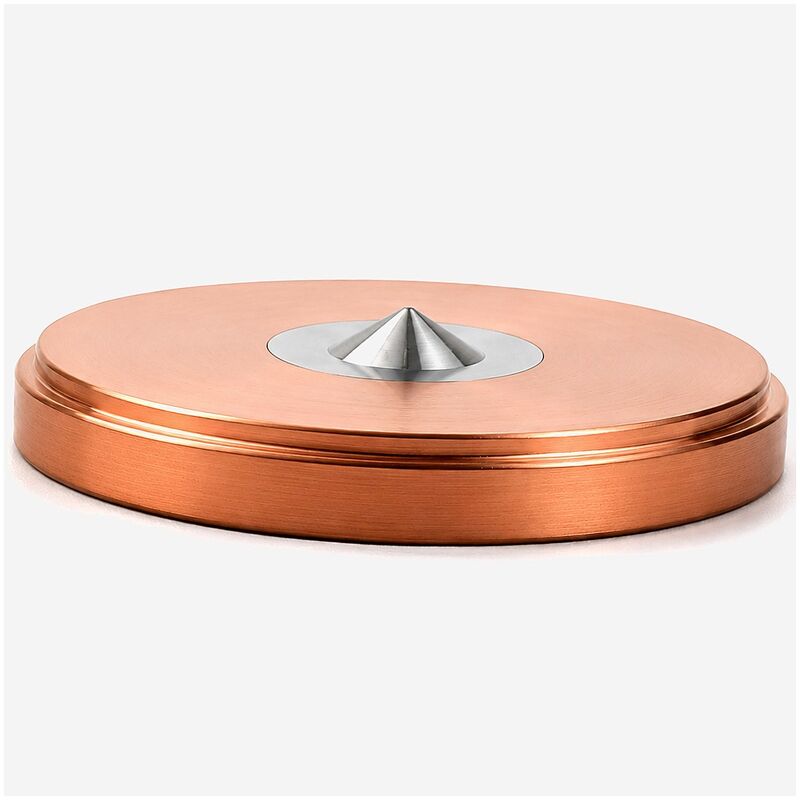

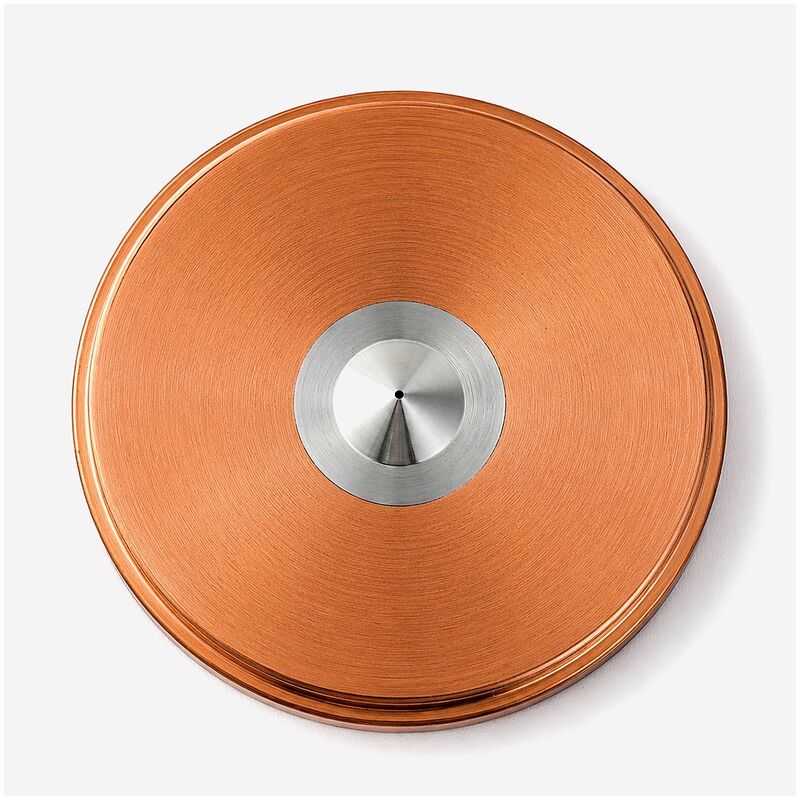

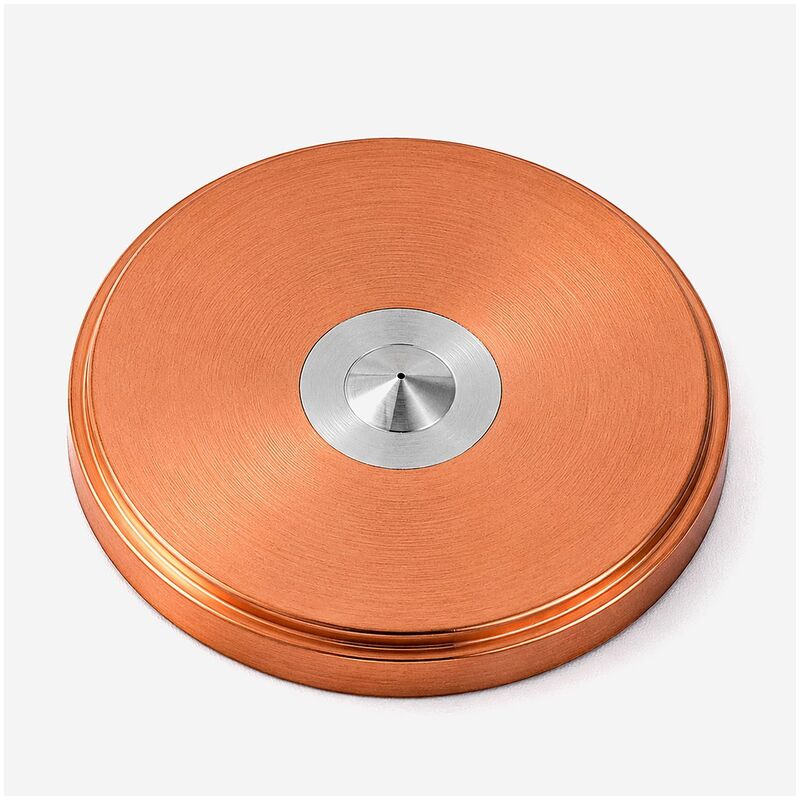

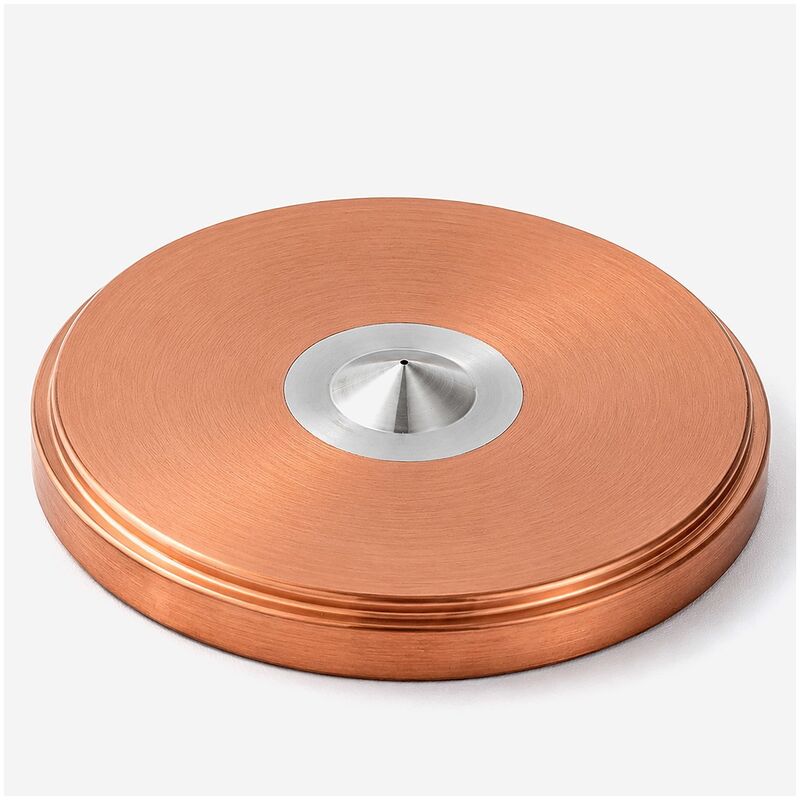

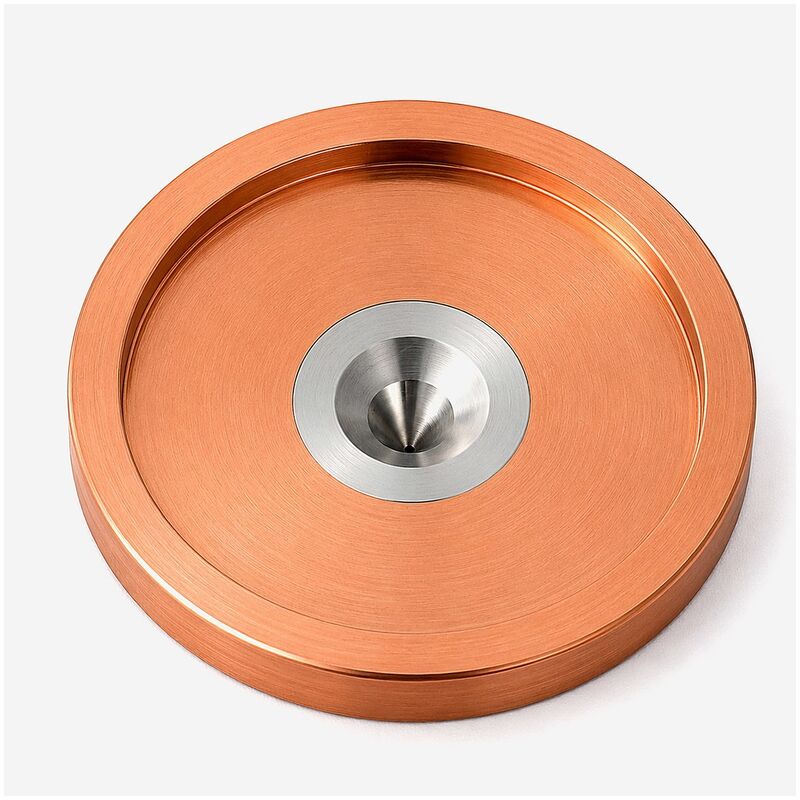

G3280-67040 Model Sampler Cone with High-purity Nickel Tip and Oxygen-free Copper Base for Precision Sampling
Place of Origin:
China
Brand Name:
Witt
Certification:
ISO9001:2015, Patent Certificate，High-tech Enterprise Certificate,GJB 9001C-2017
Model Number:
G3280-67040
WA220101-Ni ICP-MS Sampler Cone — Agilent 7700/7800/7900/8800/8900 Replacement
Tags: #ICPMSSamplerCone #AgilentCompatibleSamplerCone #ReplacementSamplerCone #NickelSamplerCone #xLensCone #ICPMSConsumables
|
Component Type |
Sampler Cone (first-stage interface cone facing the plasma) |
|
Fit Instrument |
Agilent 7700 / 7800 / 7900 / 8800 / 8900 ICP-MS platforms fitted with the x-lens ion optics |
|
Chemical Compatibility |
Aqueous and acid-based samples; not intended for HF or organic matrices |
|
Tip Material |
High-purity nickel (Ni) |
|
Substrate Material |
Oxygen-free copper (Cu) |
|
Orifice Diameter |
1.0 mm (standard bore) |
|
Lens System |
Designed for the x-lens configuration |
|
Packaging |
Individually sealed, one piece per pack |
|
Typical Application |
Aqueous and acid-digested matrices, HF-free and non-organic samples |
|
Performance Highlights |
Tight manufacturing tolerances and excellent thermal dissipation keep ion extraction steady; compatible with both nickel and stainless-steel skimmer cone bases. |
The WA220101-Ni is a direct replacement sampler cone built for Agilent 7700 / 7800 / 7900 / 8800 / 8900 ICP-MS systems running the x-lens optics. Its high-purity nickel tip and oxygen-free copper body are precision-machined to a 1.0 mm standard bore, delivering stable ion extraction and reliable heat dissipation for routine aqueous and acid-digested samples.
